SFNZF Water Seal Check Valve
Product overview
Product model: SFNZF
Nominal diameter: DN800~1800mm
Nominal pressure: 0.01MPa
Shell test pressure: 0.015MPa
Sealing test pressure: 0.007MPa
Gas tank working pressure: ≤0.003Mpa, ≤0.005Mpa
Applicable temperature: ≤120 ℃
Opening and closing time: ≤15S
Applicable medium: converter gas, etc
SFNZF Water Seal Check Valve product performance parameters:
|
Suitable gas |
Gas, dusty gas, hot and cold gas |
Water pressure |
0.3 ~ 0.4 Mpa |
|
Supply pressure |
0.5 ~ 0.8 Mpa |
Water supply |
1m3 / h |
|
Gas supply |
0.5 ~ 1m3 / min |
Valve opening and closing time |
<15 seconds (one way) |
SFNZF Water Seal Check Valve main parts of the product material:
|
Part Name |
Water tank, curved valve plate |
axis |
|
material |
Carbon steel or manganese steel |
stainless steel |

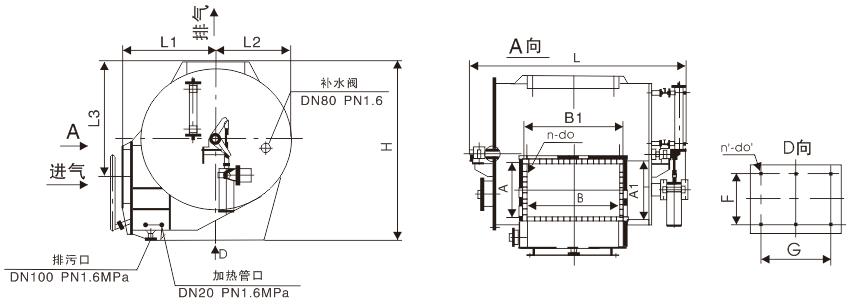

SFNZF Water Seal Check Valve product main dimensions:
|
DN |
Interface size AXB |
Interface size |
n-Фd |
L |
L1 |
L2 |
L3 |
H |
Replenishment |
|
800 |
480X1050 |
580X1150 |
32-Ф23 |
3400 |
1500 |
1300 |
1900 |
2900 |
80 |
|
900 |
580X1100 |
680X1200 |
34-Ф23 |
3500 |
1500 |
1300 |
2000 |
3000 |
80 |
|
1000 |
800X1200 |
920X1320 |
40-Ф23 |
3900 |
1600 |
1380 |
2150 |
3400 |
80 |
|
1100 |
800X1400 |
920X1520 |
44-Ф23 |
3900 |
1600 |
1380 |
2150 |
3400 |
80 |
|
1200 |
800X1400 |
920X1520 |
44-Ф23 |
3900 |
1600 |
1380 |
2150 |
3400 |
80 |
|
1300 |
880X1500 |
1000X1620 |
44-Ф23 |
4050 |
1600 |
1380 |
2200 |
3400 |
80 |
|
1400 |
970X1540 |
1080X1620 |
44-Ф23 |
4150 |
1600 |
1380 |
2200 |
3400 |
80 |
|
1500 |
1080X1850 |
1220X1990 |
56-Ф23 |
4350 |
1600 |
1400 |
2287 |
3600 |
100 |
|
1600 |
1080X1850 |
1220X1990 |
56-Ф23 |
4350 |
1600 |
1400 |
2287 |
3600 |
100 |
|
1700 |
1150X1900 |
1298X2050 |
56-Ф23 |
4350 |
1600 |
1400 |
2287 |
3600 |
100 |
|
1800 |
1250X2000 |
1402X2150 |
56-Ф23 |
4350 |
1600 |
1400 |
2287 |
3600 |
100 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the SFNZF Water Seal Check Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
