F343CX Manual Worm Gear Blind Valve
Product overview
Product model: F343CX
Nominal diameter: DN300~2000mm
Nominal pressure: PN0.05~0.25MPa
Applicable temperature: -20℃~300℃
Applicable temperature: 200℃ (silicone rubber) 300℃ (fluorine rubber)
Drive mode: electric, hydraulic, pneumatic, electro-hydraulic
Body material: carbon steel, rubber, chrome steel
Design standard: API 600, API6D, ASME B16.34, GB/T 12234
Structure length: ASME B16.10, API6D, GB/T 12221
Connection standard: ASME B16.5, ASME B16.47, GB/T 9113, JB/T 79, HG/T 20592
Pressure test: API 598, GB/T 13927, JB/T 9092
Pressure-temperature rating: ASME B16.34, GB/T 12224
F343CX Manual Worm Gear Blind Valve structural characteristics
F343CX Manual Worm Gear Blind Valve produced and sold by Baigang valve group is mainly composed of the left valve body, the right valve body, the screw rod pair, the flap, the seal ring, the lever, the worm gear and other components. The rigid base body and the support column form a rigid structure body. Rubber ring embedded in the flap, with high temperature, good sealing performance, easy replacement, long service life and so on.
F343CX Manual Worm Gear Blind Valve main performance parameters
| Nominal pressure MPa | 0.25 | 0.15 | 0.10 | 0.05 |
| Seal test pressure MPa | 0.275 | 0.165 | 0.11 | 0.055 |
| Strength test pressure MPa | 0.40 | 0.225 | 0.15 | 0.075 |
| Drive source | Compressed air 0.4-0.6MPa; Hydraulic pressure 6.3MPa; 3-phase 380V50HZ | |||
| Applicable temperature ℃ | Nitrile rubber | Silicone Rubber | fluororubber | |
| -20-100 | -20-200 | -20-300 | ||
| Suitable media | Gas and other toxic, harmful, flammable gas | |||
| Opening and closing time S | ≤60 | |||
| The main components of the material | Valve body, the gate for the carbon steel; screw for the alloy steel; nut manganese copper alloy, ductile iron; expansion device for stainless steel | |||

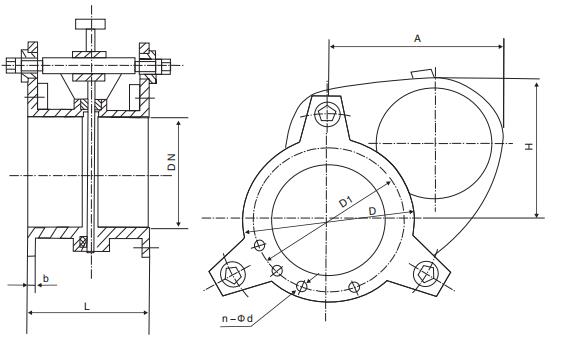

F343CX Manual Worm Gear Blind Valve main connection size:
| DN | D | D1 | b | n-φd | L |
| 300 | 440 | 395 | 22 | 12-φ22 | 500 |
| 350 | 490 | 445 | 22 | 12-φ22 | 500 |
| 400 | 540 | 495 | 22 | 16-φ22 | 600 |
| 450 | 595 | 550 | 24 | 16-φ22 | 600 |
| 500 | 645 | 600 | 24 | 16-φ22 | 600 |
| 600 | 755 | 705 | 24 | 20-φ26 | 600 |
| 700 | 860 | 810 | 26 | 24-φ26 | 800 |
| 800 | 975 | 920 | 26 | 24-φ30 | 800 |
| 900 | 1075 | 1020 | 28 | 24-φ30 | 800 |
| 1000 | 1175 | 1120 | 30 | 28-φ30 | 800 |
| 1100 | 1275 | 1220 | 30 | 28-φ30 | 800 |
| 1200 | 1375 | 1320 | 30 | 32-φ30 | 800 |
| 1300 | 1475 | 1420 | 32 | 32-φ30 | 800 |
| 1400 | 1575 | 1520 | 32 | 36-φ30 | 850 |
| 1500 | 1675 | 1620 | 32 | 36-φ30 | 850 |
| 1600 | 1790 | 1730 | 32 | 40-φ30 | 850 |
| 1800 | 1990 | 1930 | 32 | 44-φ30 | 1100 |
| 2000 | 2190 | 2130 | 32 | 46-φ30 | 1100 |
