GQ47H Track Ball Valve
Product overview
Product model: GQ47H
Nominal diameter: DN25~500mm
Nominal pressure: PN1.6~2.5MPa
Operating temperature: -190 ~ 550℃
Applicable medium: water, steam, oil
Main material: WCB
Structure length: JB/T7745 GB/T12221
Connection flange: GB/T9113 JB/79 HG20592
Butt-welding end: GB/T12224
Inspection and test: JB/T9092
GQ47H Track ball valve Product Overview:
Baigang valve group production sales GQ47H track ball valve valve group compared with the traditional ball valve, floating or fixed sphere and valve seat contact all the time, switching torque, the sealing surface is easy to damage, the red ball valve in the opening and closing valve orbit, sphere deflection - the delta Angle first, and then turn, switch sphere and valve seat during the whole process from, so the seat will not be scraped, and open-close torque is small.Suitable for petrochemical, liquefied petroleum gas storage, refineries, natural gas, compressor systems, oil and gas pipeline, light industry, textile and other industries.
GQ47H Track ball valve Features:
(1) Open and close without friction. This feature completely solve the
traditional valve seal surface friction between the impact of sealing
problems
(2) the body structure. On the pipeline installed on the valve can be
directly online inspection and maintenance. Can effectively reduce plant
parking, reduce production costs
(3) single seat design. Elimination of the valve cavity medium due to abnormal pressure and affect the safety of the problem
(4) Low torque design. Special design of the stem, just with a small hand wheel valve can easily open and close
(5) wedge seal structure. Valve is provided by the stem of the
mechanical force, the ball wedge pressed to the seat and sealed. So that
the sealing performance of the valve from the impact of pressure
changes in the pipeline under various conditions have a reliable sealing
performance
(6) self-cleaning sealing surface structure. When the ball is
disengaged from the valve seat, the fluid in the pipeline will pass
through the ball sealing surface 360 ° evenly. Not only eliminates the
high-speed fluid on the seat of the local erosion, but also washed away
the sealing surface of the accumulation of objects to achieve
self-cleaning purposes.
GQ47H Track ball valve performance parameters:
|
Model |
GQ47H-16C |
GQ47H-25C |
|
|
Working pressure (MPa) |
1.6 |
2.5 |
|
|
Working temperature (℃) |
-190 ~ 550 |
||
|
Suitable media |
Water, steam, oil |
||
|
Material |
Body, bonnet |
WCB |
|
|
Valve stem |
2Cr13 |
||
|
Sphere |
WCB + HCr / STL |
||
|
Seat |
25 |
||
|
filler |
Flexible graphite |
||

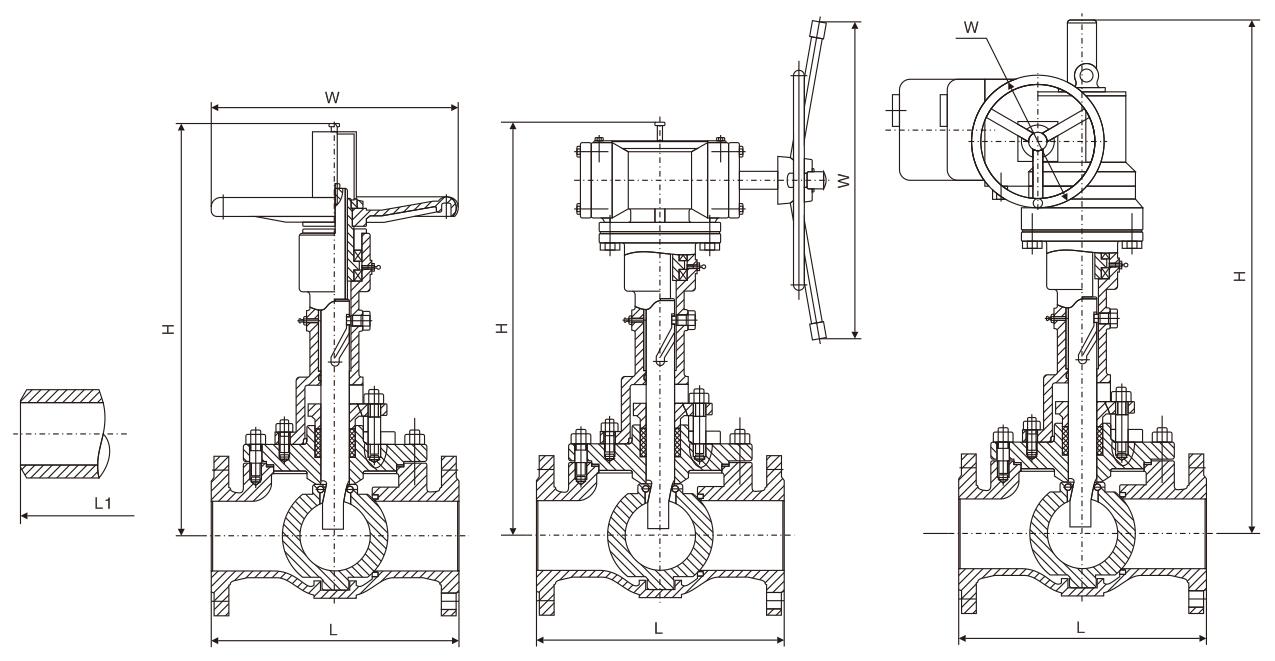

GQ47H Track ball valve main dimensions :
|
Nominal pressure |
Main dimensions |
Nominal diameter |
|||||||||||||||
|
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
||
|
PN1.6MPa |
L |
100 |
180 |
200 |
230 |
290 |
310 |
350 |
480 |
480 |
600 |
730 |
850 |
980 |
1100 |
1200 |
1250 |
|
H |
24 |
260 |
307 |
360 |
410 |
483 |
512 |
581 |
581 |
617 |
672 |
723 |
758 |
791 |
828 |
870 |
|
|
kg |
9.5 |
16 |
19 |
28 |
30 |
41 |
55 |
115 |
115 |
215 |
270 |
385 |
502 |
876 |
980 |
1240 |
|
|
PN2.5MPa |
L |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
480 |
480 |
600 |
730 |
850 |
980 |
1100 |
1200 |
1250 |
|
H |
260 |
280 |
320 |
260 |
430 |
490 |
525 |
604 |
604 |
642 |
695 |
742 |
781 |
815 |
864 |
905 |
|
|
kg |
9.5 |
16 |
19 |
28 |
30 |
45 |
59 |
121 |
121 |
230 |
289 |
402 |
540 |
913 |
1120 |
1280 |
|
|
PN4.0MPa |
L |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
480 |
480 |
600 |
730 |
850 |
980 |
1100 |
1200 |
1250 |
|
H |
260 |
280 |
320 |
360 |
436 |
492 |
527 |
649 |
649 |
701 |
750 |
750 |
790 |
832 |
875 |
910 |
|
|
kg |
10 |
17 |
20 |
25 |
32 |
45 |
59 |
115 |
115 |
2130 |
295 |
402 |
540 |
913 |
1124 |
348 |
|
|
PN6.4MPa |
L |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
480 |
480 |
600 |
730 |
850 |
980 |
1100 |
- |
- |
|
H |
280 |
300 |
329 |
365 |
450 |
509 |
541 |
725 |
725 |
781 |
790 |
806 |
821 |
858 |
- |
- |
|
|
kg |
10 |
17 |
20 |
25 |
32 |
52 |
68 |
106 |
168 |
281 |
355 |
498 |
689 |
1134 |
- |
- |
|
|
150Lb |
L |
127 |
140 |
165 |
178 |
190 |
203 |
229 |
356 |
394 |
457 |
533 |
910 |
686 |
762 |
964 |
914 |
|
300Lb |
L |
165 |
178 |
190 |
216 |
214 |
283 |
305 |
381 |
403 |
502 |
568 |
648 |
762 |
838 |
914 |
991 |
|
600Lb |
L |
216 |
229 |
241 |
292 |
330 |
356 |
432 |
508 |
559 |
660 |
787 |
838 |
889 |
991 |
1092 |
1194 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the GQ47H Track Ball Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
