V230 Pressure Regulating Valve
Product overview
Product model: V230
Nominal diameter: DN15mm~250mm
Nominal pressure: PN1.6, 4.0MPa
Applicable temperature: liquid ≤ 140℃, gas ≤ 80℃
Main material: cast iron, cast steel, cast stainless steel
Design standard: GB/T17213
Inspection standard: GB/T4213
Flange standard: JIS B220, JB/T79, ANSI B16.5-1981, GB/T9113, HG20594-97, HG20618-97, etc
V230 Pressure Regulating Valve product description:
V230 Pressure Regulating Valve produced and sold by Baigang valve group,It is composed of valve body, valve seat, valve core parts and other components. It is an energy-saving product that automatically adjusts the pressure without external energy and only depends on the pressure change of the medium itself to be adjusted. It can be used as a pressure control device for non-corrosive (Max temperature 350℃) liquid, gas and steam and other media.Widely used in petroleum, chemical, metallurgy, light industry and other industrial sectors and city heating, heating system.
◆ Model, specifications
|
category |
Pressure control valve |
Differential pressure control valve |
||||||
|
Valve pressure regulator |
Valve pressure regulator |
Differential pressure rise valve closed |
Pressure differential valve opens |
|||||
|
Hard seal |
Soft seal |
Hard seal |
Soft seal |
Hard seal |
Soft seal |
Hard seal |
Soft seal |
|
|
model |
V230 D01 |
V230D01 |
V230D02 |
V231D02 |
V230D03 |
V231D03 |
V230D04 |
V231D04 |
|
specification |
DN15-250 |
|||||||
V230 Pressure Regulating Valve technical Parameters:
|
Nominal diameter mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
|
|
Rated flow coefficient Kvs |
3.2 |
5 |
8 |
12.5 |
20 |
32 |
50 |
80 |
125 |
160 |
320 |
450 |
630 |
|
|
Nominal pressure MPa |
1.6, 4.0 |
|||||||||||||
|
Z value |
0.6 |
0.6 |
0.6 |
0.55 |
0.55 |
0.5 |
0.5 |
0.45 |
0.4 |
0.35 |
0.3 |
0.2 |
0.2 |
|
|
The highest working temperature ℃ |
V230 V231 |
Liquid ≤ 140, gas ≤ 80 |
||||||||||||
|
Hard seal V230 |
With isolation tank ≤ 200 |
With isolation tank and extension pieces ≤ 300 * |
||||||||||||
|
With isolation tank and heat sink ≤ 200 |
||||||||||||||
|
Pressure balance element |
Corrugated pipe |
Rolling the diaphragm |
||||||||||||
|
Flange standard |
DIA (also available on request flange standard) |
|||||||||||||
|
Body material |
PN16: cast iron (working temperature ≤ 200 ℃); PN4.0: cast steel, cast stainless steel (working temperature ≤ 350 ℃) |
|||||||||||||
|
Spool material |
Stainless steel; soft seal stainless steel inlaid rubber ring |
|||||||||||||
|
The maximum working pressure MPa |
Nominal pressure (Note △ Pmax and the relationship between working pressure and working temperature) |
|||||||||||||
Note:
1, the liquid> 140 ℃, gas> 80 ℃ when the valve flip;
2, Z value: noise measurement coefficient, the value used to measure
the size of the noise, the specific calculation see the self-regulating
valve selection guide.

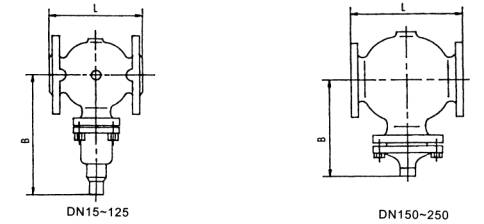

◆ Dimension
|
Nominal diameter mm |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
|
L mm |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
|
B mm |
212 |
238 |
238 |
240 |
240 |
275 |
275 |
380 |
380 |
295 |
325 |
372 |
|
Approximate weight kg |
6.7 |
9.7 |
13 |
14 |
17 |
29 |
33 |
60 |
70 |
80 |
140 |
220 |
◆ D02 (D04) actuator size and weight
|
Effective area cm 2 |
32 |
80 |
250 |
630 |
|
D mm |
172 |
172 |
263 |
380 |
|
H mm |
435 |
430 |
470 |
520 |
|
Approximate weight kg |
7.5 |
7.5 |
13 |
28 |
|
Effective area cm 2 |
32 |
80 |
250 |
630 |
|
D mm |
172 |
172 |
263 |
380 |
|
H mm |
440 |
435 |
440 |
520 |
|
Approximate weight kg |
7.5 |
7.5 |
13 |
28 |
Note: Direct acting self-operated valve of the total height and weight for the control valve and actuator height and weight.
