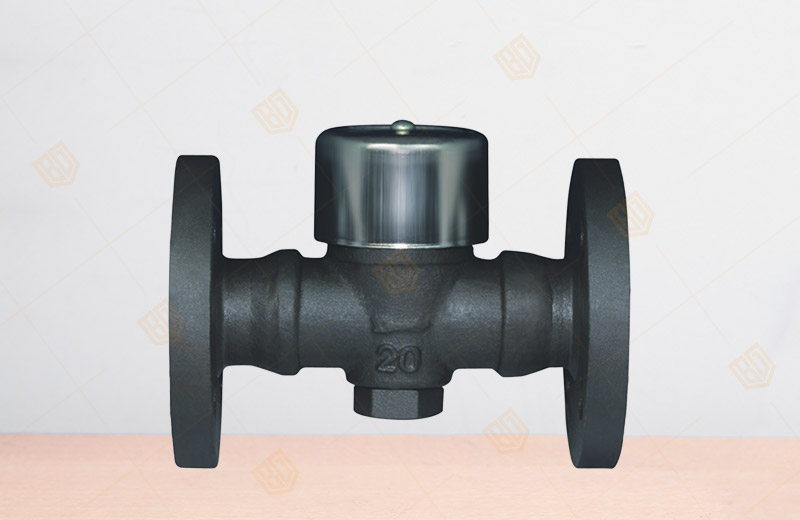

CS49 Thermal Power Disc Steam Trap
Product overview
Product model: CS49 Beijing style
Nominal diameter: DN15~65mm
Nominal pressure: PN0.01~1.6MPa
Operating temperature: ≤350℃
Main material: forged steel, stainless steel, titanium alloy steel, chromium molybdenum steel, low temperature steel
Drive mode: manual
Design specification: GB/T 9093
Structure length: GB/T 12250
Threaded connection: ISO 228
Flanged connection: JB/T 79,GB 9113,ANSI B16.34
Test and inspection: GB/T 13927
CS49 Thermal Power Disc Steam Trap main parts Material:
|
Body |
Forged steel |
|
Bonnet |
stainless steel |
|
cap |
Forged steel |
|
Valve |
stainless steel |
|
Body sealing surface |
stainless steel |
CS49 Thermal Power Disc Steam Trap Beijing-style displacement (Kg / h):
|
Product number |
DN |
Working pressure (Mpa) |
||||||
|
0.05 |
0.15 |
0.4 |
0.6 |
1 |
1.6 |
2.5 |
||
|
CS19H-16C |
15,20,25 |
150 |
280 |
400 |
475 |
600 |
800 |
|
|
CS49H-16C |
||||||||
|
CS69H-16C |
32,40,50 |
550 |
650 |
900 |
1200 |
1700 |
2100 |
|
|
CS19H-25 |
15,20,25 |
1717 |
1828 |
2536 |
2701 |
3202 |
3581 |
|
|
CS49H-25 |
32,40 |
56 |
119 |
321 |
470 |
534 |
||
|
CS69H-25 |
50 |
1800 |
2050 |
2600 |
3000 |
3500 |
4300 |
5000 |
|
CS19H-40 |
15,20,25 |
56 |
119 |
321 |
470 |
534 |
||
|
CS49H-40 |
||||||||
|
CS69H-40 |
32,40,50 |
1800 |
2050 |
2600 |
3000 |
3500 |
4300 |
5000 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the CS49 Thermal Power Disc Steam Trap performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
