J41F46 Fluorine Lined Globe Valve
Product overview
Product model: J41F46
Nominal diameter: DN15~350mm
Pressure grade: 0.6, 1.0, 1.6MPa
Applicable temperature: ≤80℃, ≤100℃, ≤120℃, ≤150℃, (according to the lining material)
Design and manufacture: GB12235
Length: GB12221 (1 series)
Flange connection size: GB4216
J41F46 Fluorine Lined Globe Valve product description
J41F46 Fluorine Lined Globe Valve produced and sold by Baigang valve group for a variety of concentrations of -50 ~ 150 ℃ aqua regia, acid, hydrochloric acid, hydrofluoric acid and a variety of organic acids, acids, strong oxidants, but also for a variety of concentrations of strong alkali organic Solvents and other corrosive gases, liquid media used on the pipeline.
J41F46 Fluorine Lined Globe Valve product Usage
J41F4 lined with fluorine plastic globe valve is designed to control strong corrosive medium, the body cavity surface covered with a variety of fluoroplastic options for different operating temperatures and fluid lines. High strength, good corrosion resistance.
J41F46 Fluorine Lined Globe Valve test
Lining: EDM testing
and testing according to GB / T13927 standard
Nominal pressure: PN Body: PN × 1.5 Seal: PN × 1.1
J41F46 Fluorine Lined Globe Valve main material
Body: cast iron, carbon steel Stainless steel bonnet: cast iron, carbon steel stainless steel Lining: Fluoroplastic
flap: carbon steel, stainless steel, completely coated Fluoroplastic stem: carbon steel, stainless steel, partially coated fluoroplastic Handwheel: cast iron , Carbon steel
J41F46 Fluorine Lined Globe Valve parts list

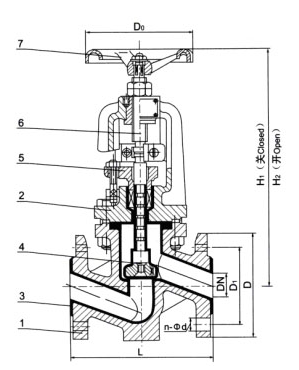

1, valve body, 2, valve cover 3, valve body 4, valve flap 5, pressure cover 6, valve stem 7, handle
|
DN |
PN | Work pressure | L | D | D1 | n-Фd | H1 | H2 | D0 | quality |
|
15 |
1.6 1.0 |
1.6 |
130 |
95 |
65 |
4-14 |
225 |
240 |
100 |
4 |
|
20 |
150 |
105 |
75 |
4-14 |
230 |
250 |
100 |
6 |
||
|
25 |
160 |
115 |
85 |
4-14 |
264 |
288 |
120 |
8 |
||
|
32 |
180 |
140 |
100 |
4-18 |
272 |
296 |
120 |
10.5 |
||
|
40 |
200 |
150 |
110 |
4-18 |
300 |
325 |
140 |
16.5 |
||
|
50 |
230 |
165 |
125 |
4-18 |
321 |
346 |
140 |
18 |
||
|
65 |
290 |
185 |
145 |
4-18 |
366 |
396 |
160 |
26 |
||
|
80 |
310 |
200 |
160 |
6 / 2-18 |
400 |
438 |
200 |
36.5 |
||
|
100 |
350 |
220 |
180 |
6 / 2-18 |
476 |
517 |
280 |
58 |
||
|
125 |
1.0 |
400 |
250 |
210 |
6 / 2-18 |
530 |
560 |
280 |
64 |
|
|
150 |
480 |
285 |
240 |
6 / 2-22 |
650 |
605 |
320 |
85 |
||
|
200 |
495 |
340 |
295 |
6 / 2-22 |
650 |
770 |
360 |
155 |
||
|
250 |
0.6 |
622 |
395 |
350 |
8 / 4-22 |
690 |
810 |
400 |
243 |
|
|
300 |
698 |
445 |
400 |
8 / 4-22 |
730 |
845 |
400 |
295 |
||
|
350 |
787 |
505 |
460 |
12 / 4-22 |
